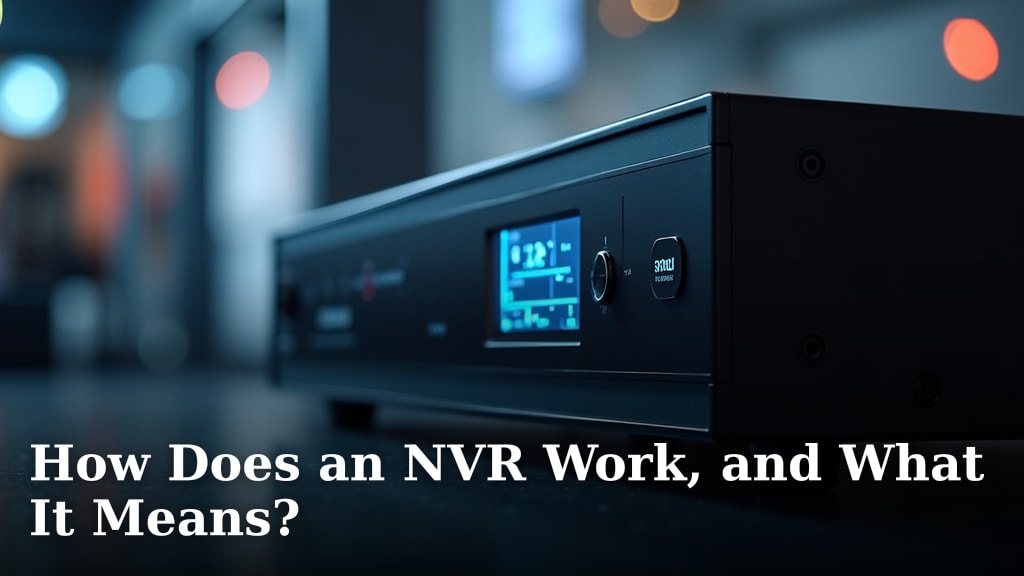

How Does an NVR Work, and What It Means?

An NVR, or Network Video Recorder, works by receiving video streams from your IP security cameras over a network and storing them on a hard drive. It’s the brain of your security system, letting you view live footage and playback recordings easily. Think of it as a smart DVR for internet-based cameras.

Many homeowners wonder how to best protect their property. An NVR offers a robust solution by centralizing your camera feeds. This makes managing your security much simpler than dealing with individual cameras. It’s a key component for a modern surveillance setup.

• An NVR records video from IP cameras.
• It stores footage on a built-in hard drive.
• You can watch live feeds and recordings.
• It acts as the central hub for your cameras.
• NVRs make managing your security easier.

Let’s walk through exactly how an NVR works step by step, so you can understand what it means for your home security.

Understanding How Your NVR Captures and Stores Video

So, how does a Network Video Recorder, or NVR, actually do its job? It’s a clever system designed to manage your IP security cameras. Think of it as the central control panel for all your watchful eyes. We’ll break down the technology so you can feel confident about your home security setup.

The Network Connection: IP Cameras to NVR

Your IP security cameras are the eyes of your system. Unlike older analog cameras, they use your existing computer network. This means they connect to your home router, just like your computer or smartphone. The NVR also connects to this same network. It uses standard network protocols, like Ethernet, to “talk” to each camera.

This network connection is key. It allows the camera to send its video stream digitally. This stream is essentially a constant flow of data. The NVR is designed to receive and understand this data from each connected camera. It’s like having a translator for all your cameras, ensuring the NVR knows what each one is seeing.

How Data Travels

When a camera captures video, it converts that visual information into digital data packets. These packets are then sent over your network. Your router acts like a mail sorter, directing these packets to the correct destination – your NVR. The NVR is always listening on the network for these incoming video streams.

Recording and Storage: The NVR’s Core Function

Once the NVR receives the video data, its main job begins: recording. Inside the NVR is a hard drive, similar to the one in your computer. This drive is where all the video footage is saved. The NVR continuously writes the incoming video streams to this hard drive.

The amount of storage space you have determines how long you can keep recordings. More storage means you can go back further in time to review events. It’s important to consider your storage needs when choosing an NVR system. You don’t want to run out of space right when you need to see something important.

Continuous vs. Event-Based Recording

There are two main ways an NVR records. The first is continuous recording. This means the NVR records everything, all the time, for every camera. It’s like having a constant video diary of your property. This gives you the most complete record, but it uses storage space quickly.

The second method is event-based recording. With this setting, the NVR only records when it detects motion or another pre-set trigger. This saves a lot of storage space. Many NVRs allow you to customize motion detection zones. You can tell the system to ignore a busy street but record if someone approaches your front door. This is a popular option for balancing footage and storage.

Playback and Viewing: Accessing Your Footage

Having footage recorded is one thing, but being able to watch it is another. Your NVR makes this easy. You can connect a monitor directly to the NVR using an HDMI or VGA cable. This lets you see live camera feeds right on the screen.

When you want to review past recordings, the NVR’s interface guides you. You can typically select a specific camera and a date and time range. The NVR then retrieves that footage from the hard drive and displays it. Many systems offer search filters, making it faster to find specific events. You can often adjust playback speed, too, to quickly scan through hours of video.

Remote Access: Security on the Go

One of the biggest benefits of an NVR system is remote access. Most modern NVRs connect to the internet. This allows you to view live camera feeds and recorded footage from anywhere. You can use a smartphone app or a web browser on your computer. This means you can check on your home or business even when you’re on vacation or at work.

Setting up remote access usually involves a few simple steps. You’ll typically need to connect your NVR to your router and then create an account with the NVR manufacturer. They provide a secure service that links your NVR to your account. This keeps your system accessible to you while protecting it from unauthorized access. Many experts agree that remote access is a major convenience for homeowners (National Institute of Standards and Technology).

The NVR’s Role as a Central Hub

Think of your NVR as the command center for your security cameras. It doesn’t just record; it manages them. It’s the piece that ties all your cameras together into one cohesive system. Without an NVR, each IP camera would be an independent device, harder to monitor and manage.

The NVR provides a single point of access for everything. This simplifies setup and daily use. Instead of logging into multiple camera interfaces, you log into one NVR. This unified approach is why NVRs are so popular for home and small business security. It’s a streamlined way to keep an eye on things.

NVR vs. DVR: What’s the Difference?

It’s easy to confuse NVRs with DVRs (Digital Video Recorders). Both record video, but they work with different types of cameras. An NVR works with IP (Internet Protocol) cameras. These cameras connect using network cables (like Ethernet) or Wi-Fi.

A DVR, on the other hand, works with analog CCTV cameras. These cameras use coaxial cables, the kind often used for cable TV. The DVR itself converts the analog signal into digital data for recording. So, if you have IP cameras, you need an NVR. If you have older analog cameras, you’d need a DVR. They serve the same purpose but for different camera technologies.

Here’s a quick comparison:

NVR vs. DVR Comparison

Feature	NVR (Network Video Recorder)	DVR (Digital Video Recorder)
Camera Type	IP Cameras (Network-based)	Analog CCTV Cameras
Connection	Ethernet cables or Wi-Fi	Coaxial cables
Video Signal	Digital	Analog (converted to digital by DVR)
Installation Flexibility	Cameras can be placed anywhere on the network	Cameras must be physically cabled back to the DVR
Video Quality	Often higher resolution, can be up to 4K	Generally lower resolution than IP cameras

What an NVR Means for Your Security

So, what does having an NVR really mean for your home security? It means you have a centralized and organized system. All your camera feeds are managed in one place. This makes setting up, viewing, and reviewing footage much simpler. It’s about having control and peace of mind.

The ability to record and store video footage provides a critical safety net. It can deter potential intruders and provide evidence if an incident occurs. The added benefit of remote access means you’re never truly disconnected from your property. Research has shown that visible security cameras can reduce crime rates (U.S. Department of Justice).

Key Benefits Summarized

Let’s quickly recap what an NVR brings to your home security:

• Centralized Management: All cameras managed from one device.
• Easy Playback: Find and watch recordings quickly.
• Remote Access: Monitor your property from anywhere.
• Scalability: Easily add more compatible IP cameras.
• Enhanced Security: Provides recorded evidence and acts as a deterrent.

Setting Up Your NVR System: A Quick Checklist

Thinking about getting an NVR? Here are a few things to keep in mind for a smooth setup:

• Ensure your IP cameras are compatible with the NVR model.
• Plan where you will place your NVR for good ventilation.
• Have Ethernet cables ready for wired camera connections.
• Check your home network’s Wi-Fi signal strength for wireless cameras.
• Consider the amount of storage space you’ll need for recordings.
• Decide if you need to connect a monitor directly to the NVR.

Conclusion

You’ve learned that an NVR is the central hub for your IP security cameras. It efficiently captures, stores, and lets you access all your video footage. This means simpler management, better security, and peace of mind, whether you’re home or away. By understanding how your NVR works, you gain control over your property’s safety. Ready to set up or optimize your system? Review your camera compatibility and storage needs to ensure your NVR is perfectly configured for your home.

Frequently Asked Questions

Can I connect any IP camera to my NVR?

Generally, you need to ensure your IP cameras are compatible with your NVR’s brand or protocol. Most NVRs work best with cameras from the same manufacturer. Always check the NVR’s specifications for a list of supported camera models or protocols.

How much storage space do I really need on my NVR?

Storage needs depend on the number of cameras, recording resolution, and recording mode (continuous vs. event-based). For example, continuous recording from multiple high-resolution cameras will fill up storage much faster. It’s wise to estimate your daily usage and multiply it by your desired retention period.

Is it difficult to set up remote viewing on an NVR?

Most modern NVRs make remote setup quite straightforward. You typically connect the NVR to your internet router and then use a smartphone app or web portal provided by the manufacturer. The process often involves creating an account and following guided steps.

What’s the main advantage of an NVR over just using Wi-Fi cameras with an app?

An NVR provides centralized storage and management for all your cameras in one physical device. This means you don’t rely solely on cloud storage, offering more control and potentially reducing subscription fees. It also simplifies playback and provides a more robust local backup.

Can an NVR help deter crime?

Yes, visible NVR camera systems can act as a significant deterrent. The presence of cameras alerts potential intruders that their actions are being recorded. This footage can also provide valuable evidence if an incident does occur, aiding law enforcement. Visible NVR camera systems can act as a deterrent, and our guide explains how decoy cameras achieve this.
