What Is a Recording Channel, and Why It Matters?

A recording channel is essentially a pathway for audio signals to travel from a source to your recording device. Think of it as a dedicated lane on a highway for your sound. It’s a fundamental concept in music production and audio engineering, making sure you capture the best possible sound. Properly understanding recording channels can dramatically improve your audio quality.

Many people confuse recording channels with other audio terms, but they play a distinct role. They are part of the larger signal chain, influencing everything from microphone placement to software settings. Mastering these channels helps you avoid common audio problems and achieve a professional sound in your recordings. It’s about control and clarity.

A recording channel is the audio signal’s path.
It ensures sound travels from source to device.
It’s key for good music and audio quality.
Understanding channels helps avoid audio issues.

Let’s walk through exactly what a recording channel is and why it’s so important for your sound.

Understanding Your Audio’s Path: The Recording Channel

A recording channel is your audio’s journey. It’s the specific route sound takes. This path starts at your microphone or instrument. It then travels through various devices. Finally, it reaches your recording software. Think of it like a single lane on a busy highway. Each lane carries a different vehicle. Your recording channel carries a different sound source. It’s not just one piece of gear. It’s the entire setup for one sound.

What Makes Up a Recording Channel?

Several components work together. They form a complete recording channel. You need to understand each part. This helps you control your sound better. Let’s break down the usual suspects.

The Source: Where Sound Begins

This is where the audio originates. It could be your voice. It might be a guitar. A drum set also counts. Even a synthesizer produces sound. The quality of this source is key. A weak or noisy source makes a poor recording. You can’t easily fix bad sound later. So, start with the best possible source you can.

The Input Device: Capturing the Sound

This is usually a microphone. Microphones convert sound waves into electrical signals. Different microphones suit different sources. A large-diaphragm condenser mic is great for vocals. A dynamic mic is often better for loud drums or guitar amps. If you’re recording an instrument directly, you might use a direct input (DI) box. This converts your instrument’s signal for your recording gear.

The Preamplifier: Boosting the Signal

Microphone signals are very weak. They need a boost. A preamplifier (or “preamp”) makes the signal stronger. It raises the signal level. This makes it usable for your recording interface. Most audio interfaces have built-in preamps. You can also buy external preamps. These often offer higher quality and more control over the sound. A good preamp adds clarity. It can also add character to your audio.

The Audio Interface: The Bridge to Your Computer

Your computer needs to understand analog audio signals. The audio interface does this conversion. It takes the boosted signal from the preamp. It converts it into a digital format your computer can record. It also does the reverse. It sends digital audio back out for playback through your speakers or headphones. Your interface usually has one or more inputs. Each input can act as a recording channel.

The Digital Audio Workstation (DAW): Your Recording Software

This is the software you use to record and edit. Think of Pro Tools, Logic Pro, Ableton Live, or GarageBand. In your DAW, you create a track. This track represents a recording channel. You assign the input from your audio interface to that track. Then, you hit record. Your DAW captures the audio data. It’s where you’ll mix and master your music too. You manage all your recording channels here.

Why Does Understanding Recording Channels Matter So Much?

Knowing about recording channels isn’t just for audio pros. It’s essential for anyone wanting clearer, better-sounding recordings. Let’s look at why it’s so important.

Achieving High-Quality Audio

Every step in the channel affects the final sound. A weak signal from a bad preamp sounds thin. A noisy microphone adds unwanted hiss. Incorrect settings in your DAW can distort the audio. By understanding each part, you can make informed choices. You can select the right gear. You can set your levels properly. This leads to professional-sounding results.

Avoiding Common Recording Problems

Have you ever recorded something and it sounded muffled? Or maybe it was too quiet and full of static? These issues often stem from a misunderstanding of the recording channel. For instance:

Low Signal Levels: If your preamp isn’t boosting the signal enough, your recording will be very quiet. You’ll then have to turn it up in editing, which also boosts the noise floor.
Distortion: If the signal is too hot (too loud) at any point, it can clip. This creates an unpleasant, harsh sound. This is often irreversible.
Noise: Poorly shielded cables, cheap preamps, or bad microphones can introduce hum or hiss.

Knowing your channel helps you diagnose and prevent these problems before they happen.

Gaining Better Control Over Your Sound

When you understand how the signal flows, you have more control. You can decide how much gain to add. You can choose where to place your microphone. You can adjust the input settings on your interface. This allows you to shape the sound from the very beginning. You’re not just reacting to problems. You’re actively creating the sound you want.

Efficient Workflow and Troubleshooting

Imagine you’re recording a podcast. You have multiple microphones, each on its own channel. If one microphone isn’t working, you know where to look. Is it the mic itself? Is the cable faulty? Is the input on the interface turned up? Is the track armed in the DAW? A clear understanding of the recording channel makes troubleshooting much faster. You can isolate the problem area quickly.

Recording Channels vs. Mix Channels: What’s the Difference?

It’s easy to mix up recording channels and mix channels. They are related but serve different purposes. Think of it this way:

Recording Channel	Mix Channel
Captures raw audio from a source.	Processes and manipulates recorded audio.
Typically involves mic, preamp, interface input.	Exists within your DAW after recording.
Focuses on getting a clean, strong signal.	Focuses on EQ, compression, effects, and balancing levels.
You set input gain and levels.	You set fader levels, pan, and add plugins.

A recording channel is all about getting the sound into your DAW cleanly. A mix channel is what you do with that sound once it’s there.

The Importance of Input Gain Staging

Setting the right input gain is perhaps the most critical step in the recording channel. Gain staging refers to setting the appropriate signal level at each stage of the recording chain. You want a healthy signal level. It should be strong enough to be clear. But it shouldn’t be so loud that it distorts or clips. A common guideline is to aim for peaks around -12 dBFS (decibels Full Scale) in your DAW. This leaves plenty of headroom. Headroom is the space between your signal’s peak level and the maximum level your system can handle without distortion. Some sources suggest aiming for peaks between -18 dBFS and -6 dBFS, depending on the dynamic range of the performance and the style of music (Audio Engineering Society).

Why is this headroom so important? Live performances can have unexpected loud moments. If your gain is set too high, these peaks will clip. This clipping is digital distortion. It sounds awful and is very difficult to fix. It’s much better to have a slightly quieter recording that you can boost later. You can always add volume. You can’t easily remove clipping.

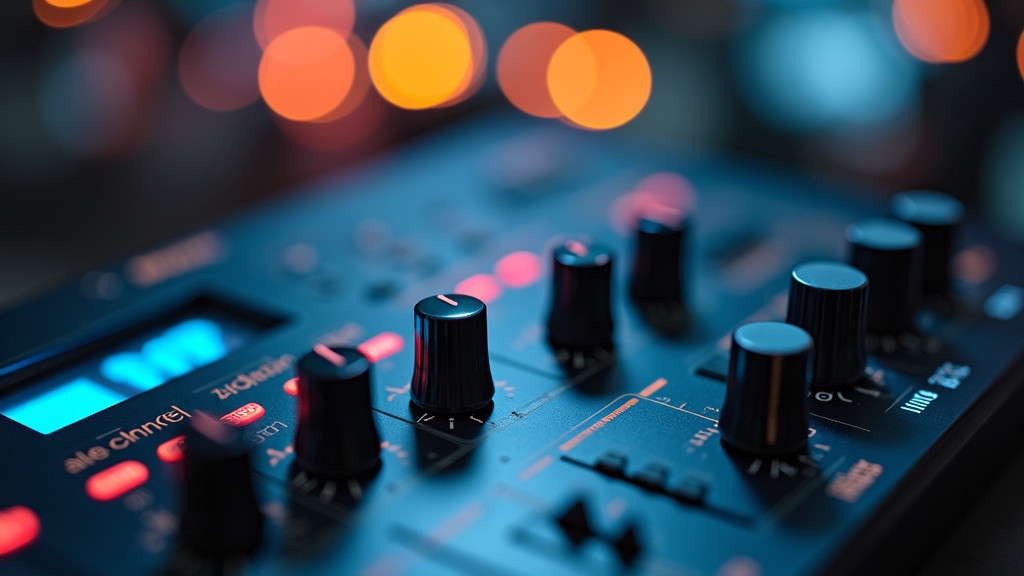

Understanding Your Audio's Path: The Recording Channel

Setting Up Your First Recording Channel

Let’s say you want to record your voice. Here’s a simplified look at setting up that channel:

Connect your microphone to your audio interface using an XLR cable.
Turn on phantom power (+48V) on your interface if you’re using a condenser microphone. Dynamic mics usually don’t need this.
Select the correct input on your interface that your microphone is plugged into.
Open your DAW and create an audio track.
Assign the interface input to that track in your DAW.
Arm the track for recording (usually a red button).
Speak or sing into the microphone at your normal performance level.
Adjust the input gain knob on your interface. Watch the meter in your DAW. You want the signal to be healthy, with peaks around -12 dBFS. Avoid hitting the red lights!
Check your headphone mix to ensure you can hear yourself clearly without the signal being too loud or distorted.

This basic setup is the foundation for almost any recording you’ll do. Getting this right means you’re already well on your way to a great sound.

Best Practices for Each Stage of the Channel

To ensure the best possible sound, pay attention to each part of the chain:

Source: Practice your performance. Ensure instruments are in tune. Record in a quiet environment.
Microphone: Use the right mic for the job. Experiment with placement. Keep it a consistent distance.
Preamplifier: Use clean gain. Avoid pushing preamps into overdrive unless it’s for a specific effect.
Audio Interface: Ensure drivers are up to date. Keep sample rates and bit depths consistent.
DAW: Use appropriate track settings. Monitor your levels carefully.

These simple steps will make a big difference in your final recording quality.

A Quick Checklist for Your Recording Channel

Before you hit record, run through this quick mental checklist:

Is my source ready and sounding good?
Is the microphone connected properly?
Is phantom power on/off if needed?
Is the correct input selected on the interface?
Is the DAW track set to the right input?
Is the input gain set correctly (no clipping, good level)?

Running through this list will save you time and frustration. It helps ensure you capture the best possible audio every time.

Conclusion

Understanding your recording channel is key to capturing great audio. You’ve learned how sound travels from its source, through your gear, and into your software. Each step, from the microphone to the DAW, plays a role in your final sound. By paying attention to gain staging and preventing common issues like clipping and noise, you gain control. You’ll achieve clearer, more professional recordings. Your next step? Practice setting up your first channel with a simple vocal or instrument recording. You’ve got this!

Frequently Asked Questions

What’s the simplest way to think about a recording channel?

Think of a recording channel as a single, dedicated path for one sound source. It’s like one lane on a highway, ensuring your voice or instrument gets to your computer without mixing with other sounds. This clear path is essential for keeping your audio clean.

Do I need expensive gear for a good recording channel?

Not necessarily! While high-end gear can offer improvements, a basic setup with a decent microphone, an audio interface, and a DAW can produce excellent results. The most important thing is understanding how each component works together and setting it up correctly.

How does the “source” affect my recording channel?

The quality of your original sound source is fundamental. A weak or noisy source means you’re starting with a poor signal. Even with perfect equipment, a bad source leads to a bad recording. Practicing your performance and ensuring your instrument is well-maintained makes a big difference.

What happens if I set my input gain too high?

If you set your input gain too high, the signal will “clip.” This is a harsh, unpleasant distortion that sounds like crackling or fuzz. It’s very difficult, often impossible, to fix later. It’s always better to record a bit too quiet and boost it later than to record it too loud and distorted.

Can I use the same recording channel for different microphones?

Yes, you can. Your audio interface typically has multiple inputs, each capable of being a recording channel. You can plug different microphones into different inputs, assign each to its own track in your DAW, and then manage each as a separate recording channel during your session.
